Zoom 5352

Details


Modem Information DOCSIS 3.0 Single Band WiFi Modem 8x4 channel bonding with speeds of up to 150 Mbps on a wired connection Cox recommends a DOCSIS 3.1 modem or gateway	Highest Service Level Go Fast - 100 Mbps

Modem Information

DOCSIS 3.0 Single Band WiFi Modem

8x4 channel bonding with speeds of up to 150 Mbps on a wired connection

Cox recommends a DOCSIS 3.1 modem or gateway

Go Fast - 100 Mbps

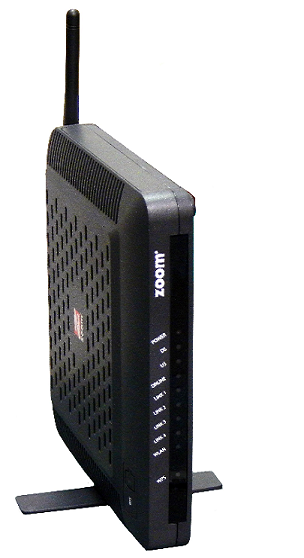

Front View Click to enlarge.		After the cable modem is successfully registered on the network, the POWER, DS, US, and ONLINE indicators illuminate continuously to indicate that the cable modem is online and fully operational.

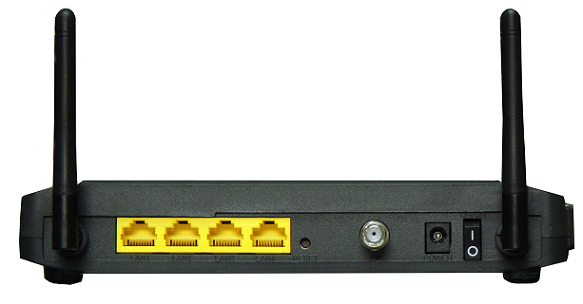

Back View Click to enlarge.		The Zoom 5323 has the following ports on the back of the WiFi modem. POWER ON / OFF - Turns the modem / router on and off. CABLE - Connects to the cable wall outlet. ETHERNET - Provides internet access to a single device. Only one port is active at a time. RESET - Use this button in the unlikely event that you want to restore the default factory settings. The RESET button is for maintenance purposes only.

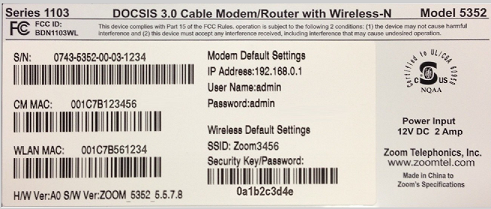

MAC Address Click to enlarge.		MAC addresses are written as 12 digits containing both letters and numbers (0-9, A-F). A MAC address is unique. The first six characters of the MAC address are unique to the device's manufacturer.

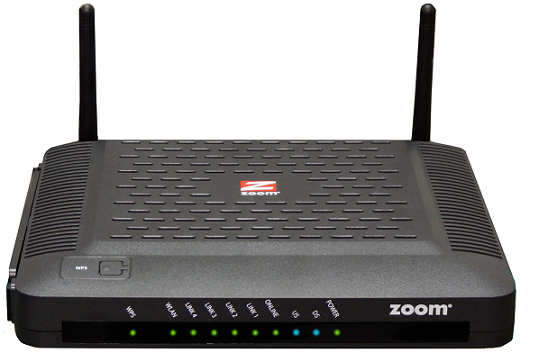

Lights on the Zoom Motorola 5350

The modem lights indicate the current status of your WiFi modem. To troubleshoot any connection problems, use the table below.

Modem Light	Status	Problem
Power	Off	No power - Verify all cable connections and try resetting the modem.
Power	Solid Green	None
DS (Downstream)	Blinking Green	Scanning for the downstream channel - Verify all cable connections and try resetting the modem.
	Solid Green	None - connection established on one channel
	Solid Blue	None - operating on more than one channel (downstream bond mode)
US (Upstream)	Off	The upstream channel is inactive - Verify all cable connections and try resetting the modem.
	Blinking Green	Scanning for the upstream channel - Verify all cable connections and try resetting the modem.
	Solid Green	None - connection established on one channel
	Solid Blue	None - operating on more than one channel (upstream bond mode)
ONLINE	Off	No connection - Verify all cable connections and try resetting the modem.
ONLINE	Solid Green	None - modem is operational
LINK 1 - 4	Off	No Ethernet link detected
	Blinking Green	None - data is flowing
	Blinking Amber	None - data is flowing
	Solid Green	None - connected to 10 or 100 Mbps
	Solid Amber	None. - connected at 10 or 100 Mbps
WPS	Off	No WiFi client associated with the cable modem via WPS - Enable WiFi.
	Blinking Green	None - WPS is in discovery mode (LED blinks for up to 2 minutes)
	Solid Green	None - WPS configuration is successful
WLAN	Off	WiFi disabled - Enable WiFi.
	Blinking Green	Data flowing
	Solid Green	None - WiFi is enabled
