Zoom 5341

Details


Modem Information DOCSIS 3.0 Cable Modem 4x4 channel bonding with speeds of up to 50 Mbps on a wired connection Cox recommends a DOCSIS 3.0 16x4 or higher modem What does this mean?DOCSIS 3.0 modems with 4x4 channel bonding have a maximum speed of 50 Mbps on the Cox network.	Highest Service Level Go Fast - 100 Mbps

Modem Information

DOCSIS 3.0 Cable Modem

4x4 channel bonding with speeds of up to 50 Mbps on a wired connection

Cox recommends a DOCSIS 3.0 16x4 or higher modem

Go Fast - 100 Mbps

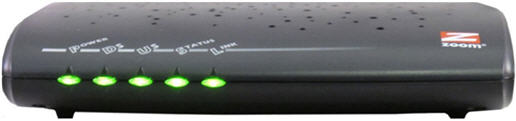

Front View Click to enlarge.		The highest service level is based on wired connectivity speeds. After the cable modem is successfully registered on the network, the POWER and STATUS indicators illuminate continuously to indicate that the cable modem is online and fully operational.

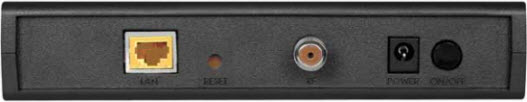

Back View Click to enlarge.		The Zoom 5341 has the following ports available on the back of the modem: POWER - Connects the cable modem to the power adapter CATV - Connects to the cable wall outlet RESET - Resets the device ETH - Connects to the Ethernet port on your computer or home network

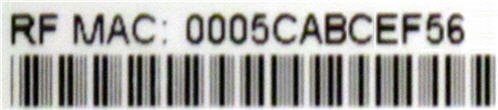

MAC Address Click to enlarge.		MAC addresses are written as 12 digits containing both letters and numbers (0-9, A-F). A MAC address is unique. The first six characters of the MAC address are unique to the device's manufacturer.

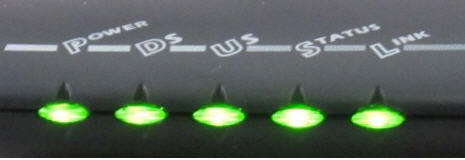

image of the Modem lights

The lights indicate the current status of your modem. To troubleshoot any connection problems, use the table below.

Modem Light	Status	Problem
DS	Blinking	Establishing a connection from the Internet to the computer. Verify all cable connections and try resetting the modem.
DS	Solid	None. Connection from the computer to the internet established.
US	Off	Establishing a connection from the computer to the internet. Verify all cable connections and try resetting the modem.
US	Solid	None
STATUS	Blinking	Establishing a connection to the cable provider. Verify all cable connections and try resetting the modem.
STATUS	Solid	None - modem connection established
LINK	Blinking	None. Data is flowing between the computer and the internet
LINK	Solid	None. The modem is connected to a LAN device, like a computer or router.
