Ubee SpeedStream 60678EU

Details


Modem Information Cable Modem DOCSIS 2.0 with speeds of up to 25 Mbps on a wired connection. Cox recommends a DOCSIS 3.1 modem or gateway What does this mean?DOCSIS 2.0 has a maximum speed of 25 Mbps on the Cox network.	Highest Service Level Starter

Modem Information

Cable Modem

DOCSIS 2.0 with speeds of up to 25 Mbps on a wired connection.

Cox recommends a DOCSIS 3.1 modem or gateway

Starter

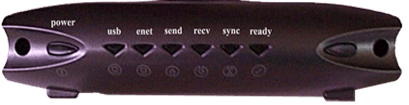

Front View Click to enlarge.		After the cable modem has successfully registered on the network, the USB or Enet, Ready, and Sync indicators illuminate continuously to indicate that the modem is online and fully operational.

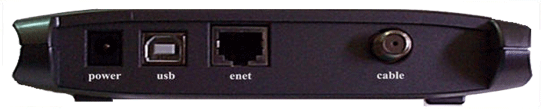

Back View Click to enlarge.		The Ubee / Ambit SpeedStream 60678EU has the following ports available on the back of the modem. Power - Connects the cable modem to the power adapter. USB - Connects to the USB port on your computer. Enet - Connects to the Ethernet port on your computer. Cable - Connects to the cable wall outlet.

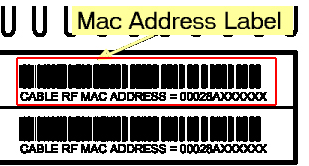

MAC Address Click to enlarge.		MAC addresses are written as 12 digits containing both letters and numbers (0-9, A-F).A MAC address is unique. The first six characters of the MAC address are unique to the manufacturer of the device.

The modem lights indicate the current status of your cable modem. To troubleshoot any connection problems, use the table below.

Modem Light	Status	Problem
Power	Solid Green	None.
Power	Off	No power. Verify power supply connections and electrical outlet. Also make sure the outlet is not connected to a switch.
USB	Solid Green	None. USB connection to the computer found.
USB	Off	No USB found. Verify USB cable connections, the TCP/IP settings and the USB cable. You might need to reinstall the USB drivers.
Enet	Solid Green	None. Ethernet connection to computer found.
Enet	Off	No Ethernet found. Verify Ethernet cable connections, the TCP/IP settings and the NIC. You might need to reinstall the NIC drivers.
Send	Flashing Green	None. Transferring data.
Recv	Flashing Green	Sync and Ready LED Off. Searching for cable connection. Sync and Ready LED On. Transmitting data. Verify all cable connections and try resetting the modem.
Recv	Off	No cable connection. Verify all cable connections and try resetting the modem.
Sync	Solid Green	None
Ready	Solid Green	None
