TP-LINK TC7650

Details


Modem Information DOCSIS 3.0 Cable Modem 24x8 channel bonding To achieve Gigablast or Ultimate Classic speeds, a DOCSIS 3.1 modem is required	Highest Service Level Ultimate 500

Modem Information

DOCSIS 3.0 Cable Modem

24x8 channel bonding

To achieve Gigablast or Ultimate Classic speeds, a DOCSIS 3.1 modem is required

Ultimate 500


Front View Click to enlarge.		After the cable modem is successfully registered on the network, the Power and Internet LED indicators illuminate continuously to indicate that the modem is online and fully operational.

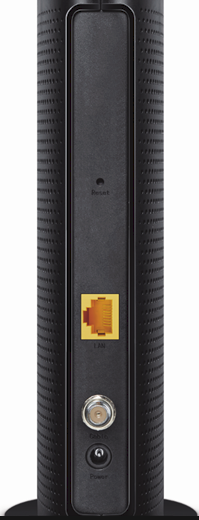

Back View Click to enlarge.		The TP-LINK TC7650 has the following ports available on the back of the modem. Reset Button - With the modem powered on, use a pin to press and hold the Reset button until all LEDs turn on momentarily, and the modem will be reset to its factory default settings. LAN Port - Through this port, you can connect the modem to your PC or an Ethernet network device. Cable Port - Connect your coaxial cable line to this port. Power - Connect the supplied power adapter to this port.

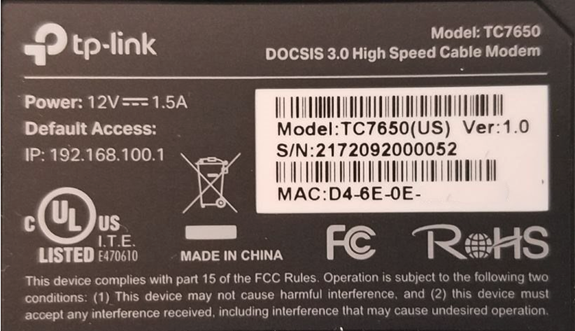

MAC Address Click to enlarge.		MAC addresses are written as 12 digits containing both letters and numbers (0-9, A-F). A MAC address is unique. The first six characters of the MAC address are unique to the manufacturer of the device.

The lights indicate the current status of your modem. To troubleshoot any connection problems, use the table below.

Modem Light	Status	Problem
Power	On	None - the modem is powered on.
Power	Off	No power. Verify power supply connections and electrical outlet. Ensure the outlet is not connected to a switch.
Downstream	Green	None - multiple downstream channels are in use.
	White	None - one downstream channel is in use.
	Flashing	None - scanning for downstream channels. Verify all cable connections and try resetting the modem.
	Off	Cable modem offline. Verify all cable connections and try resetting the modem.
Upstream	Green	None - multiple upstream channels are in use.
	White	None - one downstream channel is in use.
	Flashing	None - scanning for an upstream channel. Verify all cable connections and try resetting the modem.
	Off	No upstream channel are in use. Verify all cable connections and try resetting the modem.
Internet	On	None - the modem is online.
	Flashing	None - scanning for configuration parameters.
	Off	The modem is offline. Verify all cable connections and try resetting the modem.
LAN	On	None - a device is connected to the LAN port.
LAN	Off	No devices are detected on the LAN port. Verify all cable connections and try resetting the modem.
