SMC 8013

Details


Modem Information Single Band WiFi Modem DOCSIS 2.0 with speeds of up to 25 Mbps on a wired connection. Cox recommends a DOCSIS 3.0 16x4 or higher modem What does this mean?DOCSIS 2.0 has a maximum speed of 25 Mbps on the Cox network.	Highest Service Level Starter

Modem Information

Single Band WiFi Modem

DOCSIS 2.0 with speeds of up to 25 Mbps on a wired connection.

Cox recommends a DOCSIS 3.0 16x4 or higher modem

Starter

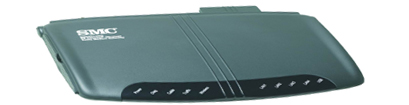

Front View Click to enlarge.		After the cable modem successfully registers on the network, the Power, Cable, and Traffic indicators illuminate continuously to indicate that the cable modem is online and fully operational.

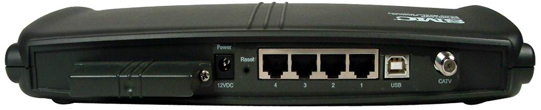

Back View Click to enlarge.		The SMC 8013 has the following ports available on the back of the modem. Power - Connects the cable modem to the power adapter Reset - Resets the cable modem ETHERNET (1-4) - Connects to the Ethernet port on your computer USB - Connects to the USB port on your computer CATV - Connects to the cable wall outlet

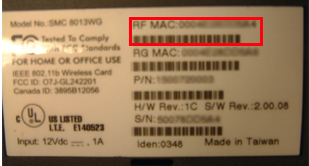

MAC Address Click to enlarge.		MAC addresses are written as 12 digits containing both letters and numbers (0-9, A-F). A MAC address is unique. The first six characters of the MAC address are unique to the manufacturer of the device.

The modem lights indicate the current status of your cable modem. To troubleshoot any connection problems, use the table below.

Modem Light	Status	Problem
Power	Solid Green	None.
Power	Off	No power. Verify power supply connections and electrical outlet. Also make sure the outlet is not connected to a switch.
Diag	Solid Amber	Device System Failure. Verify all cable connections and try rebooting the modem.
Diag	Off	None. Normal operation.
Cable	Solid Greed	None. Cable connection found.
	Flashing green	Searching for cable connection. Verify all cable connections and try resetting the modem.
	Off	No cable connection. Verify all cable connections and try resetting the modem.
Traffic	Solid Greed	None. Cable connection found.
Traffic	Flashing green	Searching for cable connection. Verify all cable connections and try resetting the modem.
Wireless	Flashing Green	None. Transferring data via a wireless connection
Wireless	Off	No wireless link.
LAN 1-4	Solid Amber	None. Connected at 10 Mbps.
	Solid Green	None. Connected at 100 Mbps.
	Flashing Green	None. Transferring data.
	Off	No Ethernet found. Verify Ethernet cable connections, the TCP/IP settings and the NIC. You might need to reinstall the NIC drivers.
USB	Solid Green	None. Successfully found the computer through USB connection.
	Flashing Green	None. Transferring data.
	Off	No USB found. Verify USB cable connections, the TCP/IP settings and the USB cable. You might need to reinstall the USB drivers.
