Netgear CM400

Details


Modem Information DOCSIS 3.0 Cable Modem 8x4 channel bonding with speeds of up to 150 Mbps on a wired connection Cox recommends a DOCSIS 3.0 16x4 or higher modem	Highest Service Level Go Fast - 100 Mbps

Modem Information

DOCSIS 3.0 Cable Modem

8x4 channel bonding with speeds of up to 150 Mbps on a wired connection

Cox recommends a DOCSIS 3.0 16x4 or higher modem

Go Fast - 100 Mbps

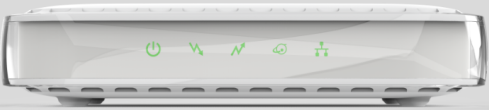

Front View Click to enlarge.		The Netgear CM400 is also available as a black device with amber lights. Check your power adapter connections if the Power LED is not solid green.

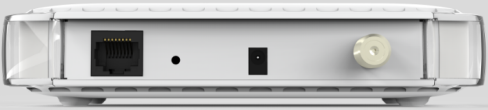

Back View Click to enlarge.		The Netgear CM400 includes the following connection ports: POWER - Connects the cable modem to the power adapter RESET - Restores factory settings ETHERNET - Connects to the Ethernet port CABLE - Connects to coaxial cable

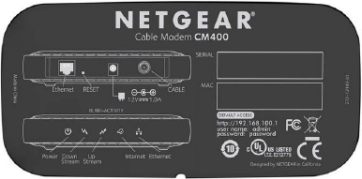

MAC Address Click to enlarge.		MAC addresses are written as 12 digits containing both letters and numbers (0-9, A-F). A MAC address is unique. The first six characters of the MAC address are unique to the device's manufacturer.

The lights indicate the current status of your cable modem. To troubleshoot any connection problems, use the table below.

Modem Light	Status	Problem
Power	Solid Green	None.
Power	Off	No power. Verify power supply connections and electrical outlets. Also, make sure the outlet is not connected to a switch.
Upstream	Solid green	None. One or more upstream channels are in use.
	Blinking green	None. Scanning for an upstream channel.
	Off	No upstream channel is in use.
Downstream	Solid green	None. One or more downstream channels are in use.
	Blinking green	None. Scanning for a downstream channel.
	Off	No downstream channel is in use.
Internet	Solid Green	None.
	Blinking Green	None. Scanning for configuration parameters - Verify power supply connections and electrical outlet. Also, make sure the outlet is not connected to a switch.
	Off	The cable modem is offline. Verify all cable connections and try resetting the modem.
Ethernet	Green	A device is connected to the Ethernet port and powered on.
Ethernet	Off	No device is connected to the Ethernet port.
