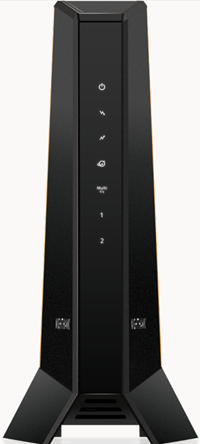

Power | Off | No power. Verify all cable connections and reset the modem. |
Solid White | The modem is receiving power and functioning normally. |
Solid Red | The modem is too warm and may overheat. Disconnect the power adapter and allow the modem to cool down for a few minutes. Once the modem has cooled, ensure it is placed in a vertical position and in a location with good ventilation before reconnecting the adapter. |
Downstream | Off | The downstream channel is inactive. Verify all cable connections and reset the modem. |
Solid Amber | A connection from the computer to the internet is established on one channel. |
Blinking White | The modem is scanning for downstream channel. Verify all cable connections and try resetting the modem if the LED indicator continues to blink. |
Solid White | A connection from the computer to the internet is established on two or more channels. |
Upstream | Off | The upstream channel is inactive. Verify all cable connections and reset the modem. |
Solid Amber | A connection from the internet to the computer is established on one channel. |
Blinking White | The modem is scanning for an upstream channel. Verify all cable connections and try resetting the modem if the LED indicator continues to blink. |
Solid White | A connection from the internet to the computer is established on two or more channels. |
Online | Off | The modem is offline. Verify all cable connections and reset the modem. |
Solid White | The modem is online and operational. |
Blinking White | The modem is synchronizing. Verify all cable connections and try resetting the modem if the LED indicator continues to blink. |

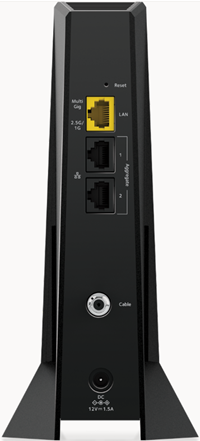

Multi Gig | Solid Blue | A 2.5 Gbps device is powered on and connected to the port. |
Blinking Blue | The port is sending or receiving traffic at 2.5 Gbps. |
Solid White | A 1 Gbps device is powered on and connected to the port. |
Blinking White | The port is sending or receiving traffic at 1 Gbps. |
Solid Amber | A 100 Mbps device is powered on and connected to the port. |
Blinking Amber | The port is sending or receiving traffic at 100 Mbps. |
Eth 1 and Eth 2 | Off | A device is not connected to this port. |
Solid White | A 1 Gbps device is powered on and connected to the port. |
Solid Amber | A 10 Mbps or 100 Mbps device is powered on and connected to the port. |
Blinking White or Amber | The port is sending or receiving traffic. |
