Linksys CM3024

Details




Modem Information

DOCSIS 3.0 Cable Modem

24x8 channel bonding

To achieve Gigablast or Ultimate Classic speeds, a DOCSIS 3.1 modem is required

Highest Service Level

Ultimate 500

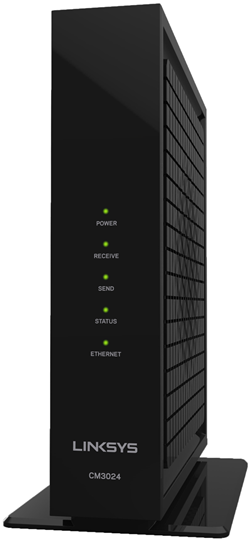

Front View

front view

Click to enlarge.

After the cable modem is successfully registered on the network, the Power, Receive, Send, and Status indicators illuminate continuously to indicate that the cable modem is online and fully operational.

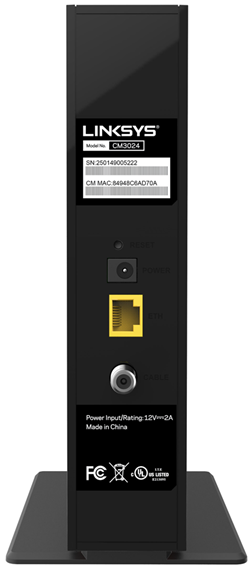

Back View

back view

Click to enlarge.


The modem includes the following connection ports:

  • POWER - Connects to the power adapter
  • ETH - Connects devices to the 10/100/1000 RJ45 Ethernet port
  • CABLE - Connects to a coaxial cable

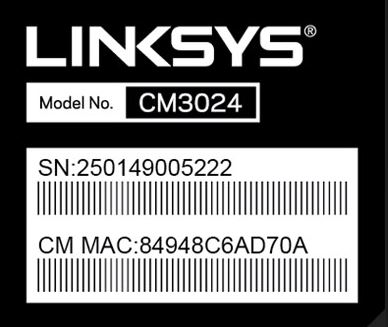

MAC Address

MAC label

Click to enlarge.


The information below is usually found on a sticker located on the bottom of the modem.

  • The S/N is the serial number of the Linksys CM3024.
  • The CM MAC is the MAC address of the Linksys CM3024.

Troubleshooting

The lights indicate the current status of your device. To troubleshoot any connection problems, use the table below.

Modem LightStatusProblem
PowerOnThe modem is powered on.
OffNo power; Verify power supply connections and electrical outlet. Ensure the outlet is not connected to a switch. Press the Power ON/OFF button on the back of the modem to ensure it is turned on.
ReceiveSolid BlueMultiple downstream channels are in use.
Solid GreenOne downstream channel is in use.
BlinkingScanning for downstream channels. Verify all cable connections and try resetting the modem.
SendSolid BlueMultiple upstream channels are in use.
Solid GreenOne downstream channel is in use.
Blinking GreenScanning for an upstream channel. - Verify all cable connections and try resetting the modem.
OffNo upstream channels are in use. - Verify all cable connections and try resetting the modem.
StatusOnThe modem is online.
BlinkingThe modem is registering a connection.
OffThe modem is Offline. - Verify all cable connections and try resetting the modem.
EthernetOnA device is connected to the Ethernet port.
BlinkingData is being transferred over the Ethernet connection.
OffNo device is connected or the device is disabled. Verify all cable connections and try resetting the modem.

Manufacturer Resources

For more detailed technical information on the Linksys CM3024, use the User Guide (PDF).
