Hitron CODA

Details



Modem Information

DOCSIS 3.1 modem

32x8 channel bonding

Highest Service Level

Go Super Fast - 1-Gig

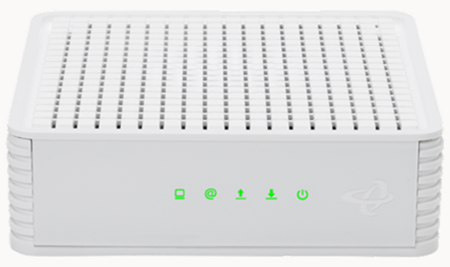

Front View

Front View

Click to enlarge.

After the cable modem is successfully registered on the network, the Power, Downstream, Upstream, and Online indicators continuously indicate that the cable modem is online and fully operational.

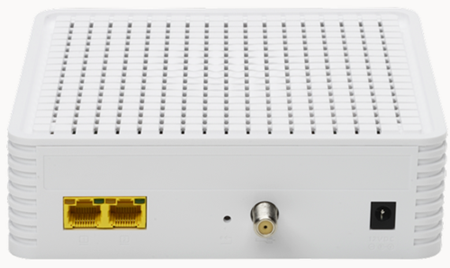

Back View

Back View

Click to enlarge.



The Hitron CODA has the following ports and buttons on the back of the modem.

  • RESET - Insert the end of a paper clip or other small object with a narrow tip into the Reset opening on the back of your CODA modem.
    • To reboot, press and hold the Reset button for 3 to 4 seconds. The CODA resets using your existing settings.
    • To restore to factory settings, press and hold the Reset button for 10 seconds or more.
  • LAN 1 LAN 2 - Connect devices using Category 5 or 6 Ethernet cables with RJ45 connectors
  • COAX - Connects to a coaxial cable
  • POWER - Connects to the power adapter


MAC Address

MAC Address

Click to enlarge.



MAC addresses are written as 12 digits containing both letters and numbers (0-9, A-F). A MAC address is unique. The first six characters of the MAC address are unique to the device's manufacturer.

Troubleshooting

The modem lights indicate the current status of your cable modem. To troubleshoot any connection problems, use the table below.


Modem Light Status Problem
Power

Power light
 		 On None - the modem is powered on
Off No power. Verify power supply connections and electrical outlets. Ensure the outlet is not connected to a switch.
Downstream

Downstream light		 Solid Blue None - multiple downstream channels are in use
Solid Green None - one downstream channel is in use
Blinking Green Scanning for downstream channels. Verify all cable connections and try resetting the modem.
Off No downstream activity on the connection. Verify all cable connections and try resetting the modem.
Upstream

Upstream light		 Solid Blue None - multiple upstream channels are in use
Solid Green None - one upstream channel is in use
Blinking Green Scanning for an upstream channel. Verify all cable connections and try resetting the modem.
Off No upstream channels are in use. Verify all cable connections and try resetting the modem.
Online

Online light		 Solid Green None - the modem is online
Green Blinking None - the modem is registering a connection
Off The modem is offline. Verify all cable connections and try resetting the modem.
LAN Ports

LAN port light
 Solid Green None - a device is connected to one or more of the LAN ports via an Ethernet 10/100/1000 Mbps link
Off No device is connected, or the device is disabled. Verify all cable connections and try resetting the modem.

Manufacturer Resources

Use the resources below for more detailed technical information on the Hitron CODA.
