Cisco DPQ3925

Details



Modem Information

DOCSIS 3.0 Single Band WiFi Internet and Telephone Modem

8x4 channel bonding with speeds of up to 150 Mbps

My WiFi Compatible

Cox recommends a DOCSIS 3.1 modem or gateway

Highest Service Level

Essential

Combination Internet and Telephone modems purchased or received in new or used condition from third-party retailers are not certified for use with the Cox network.



Front View

image of front View of DPQ3925 gateway

Click to enlarge.

The Cisco DPQ3925 is a DOCSIS 3.0 wireless residential WiFi modem with an embedded digital voice adapter. It is a high-performance home WiFi modem that combines a cable modem, two-line digital voice adapter, router, and wireless access point in a single device. This Internet and Telephone Modem is a cost-effective voice and networking solution for both the home and small office.

  • Provides a faster connection to the Internet and can be activated for up to two phone lines.
  • Requires subscription to Cox Digital Telephone, Cox High Speed Internet service, or both.

After the WiFi modem is successfully connected to the network, the POWER, DS, US, ONLINE, ETHERNET (1-4), USB, WIRELESS LINK, SETUP, TEL1, TEL2, and BATTERY indicators illuminate continuously to indicate that the gateway is online and fully operational. For more details, refer to the Modem Lights section.


Back View

image of back View of DPQ3925 gateway

Click to enlarge.



The Cisco DPQ3925 includes the following connection ports:

  • POWER - Connects the wireless home gateway to the AC power source
  • ETHERNET (1-4) - Provides internet access to a single device. Only one port is active at a time.
  • USB - Connects to the USB port on your computer
  • TELEPHONE 1 and 2 - Connects to home telephone wiring and to conventional telephones for or fax machines
  • RESET - Used by Cox maintenance to reset the cable modem - may delete all previous settings
  • WIRELESS SETUP - Activates Wireless Protected Setup (WPS), which allows you to add wireless devices to the wireless network of the residential gateway
  • CABLE - Connects to an active cable signal from your service provider

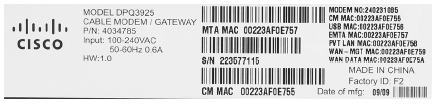

MAC Address

image of MAC Address of DPQ3925 gateway

Click to enlarge.



The information below is usually found on a sticker located on the bottom of the device.

  • The S/N is the serial number of the DPQ3925.
  • The CM MAC is the MAC address of the DPQ3925.

Troubleshooting

Gateway lights on DPQ3925 gateway


The lights indicate the current status of your Internet and Telephone modem. To troubleshoot any connection problems, use the table below.


Internet and Telephone Light Status Problem
POWER Solid Green None
Off No power - Verify that the power supply and electrical outlet connections are secure. Also make sure the outlet is not connected to a switch.

DS

(Downstream)

 Solid Green None
Blinking Green Internet and Telephone modem establishing a connection from the Internet to the computer - Verify all cable connections and try resetting the device.

US

(Upstream)

 Solid Green None
Blinking Green Internet and Telephone modem trying to connect to service - looking for upstream - Verify all cable connections and try resetting the device.
Off Internet and Telephone modem establishing a connection from the computer to the Internet - Verify all cable connections and try resetting the device.
ONLINE Solid Green None
Off No connection - Verify all cable connections and try resetting the device.
ETHERNET 1-4 Solid Green None - a device is connected to the Ethernet port
Blinking Green None - a device is connected to the Ethernet port and data is being sent to or from the Internet and Telephone modem.
Off No connection - Verify all cable connections and try resetting the device.
WIRELESS LINK Solid Green None - the Wireless Access Point is operational
Blinking Green None - data is being transferred over the wireless connection
Off The wireless access point has been disabled by the user - Verify all cable connections and try resetting the device.
TEL 1
TEL 2 		Solid Green None. Indicates service is enabled
Blinking Green None - Line 1 or Line 2 is in use
BATTERY Solid Green None - battery is charged
Blinking Green Battery charge is low - Make sure the power cord is connected to the unit and an active power source.
Off No battery in the unit

Manufacturer Resources

For more detailed technical information on the DPQ3925, use the resources below from Cisco.
