Asus CM32

Details

Modem Information

DOCSIS 3.0 Dual Band 802.11-AC WiFi Modem

32x8 channel bonding

To achieve Gigablast or Ultimate Classic speeds, a DOCSIS 3.1 modem is required

Highest Service Level

Ultimate



Front View

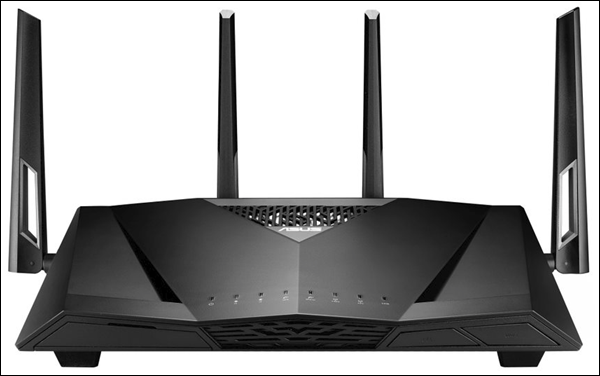

front view of the CM 32 modem

Click to enlarge.

After the cable modem is successfully registered on the network, the Power, Upstream, Downstream, and Online indicators illuminate continuously to indicate that the cable modem is online and fully operational. For more details, refer to the Modem Lights section.




Back View

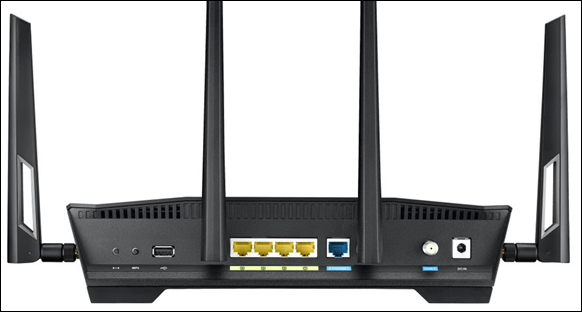

back of asus CM32 modem

Click to enlarge.


The Asus CM32 has the following ports available on the back of the modem.

  • RESET - Use this button to reboot the modem or restore to factory defaults. It is recessed to prevent accidental resets.
  • ETHERNET - Connects to the 10/100/1000 Ethernet ports on your computer. Provides internet access to a single device. Only one port is active at a time.
  • CABLE - Connects to the cable wall outlet.
  • POWER - Connects the modem to the power cord.



MAC Address

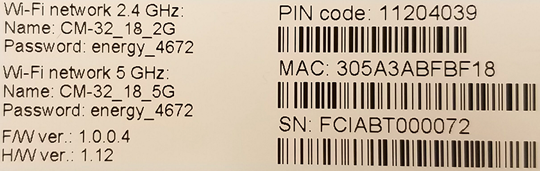

MAC Address of Asus CM32

Click to enlarge.


MAC addresses are written as 12 digits containing both letters and numbers (0-9, A-F). A MAC address is unique. The first six characters of the MAC address are unique to the manufacturer of the device.

Modem Lights

The modem lights indicate the current status of your cable modem. To troubleshoot any connection problems, use the table below.


Modem LightStatusProblem
POWER

power light
OffNo power. Verify all cable connections and try resetting the modem.
Solid GreenNone
RECEIVE

Receiving
FlashingScanning for downstream channel. Verify all cable connections and try resetting the modem.
Solid GreenNone. The downstream channel is connected in DOCSIS 3.0 mode.
Solid BlueNone. High speed Internet connection with downstream channels in DOCSIS 3.1 mode.
SEND

Send
OffUpstream channel inactive. Verify all cable connections and try resetting the modem.
FlashingScanning for upstream channel. Verify all cable connections and try resetting the modem.
Solid GreenNone. The downstream channel is connected in DOCSIS 3.0 mode.
Solid BlueNone. High speed Internet connection with downstream channels in DOCSIS 3.1 mode.
ONLINE

online
OffNo connection. Verify all cable connections and try resetting the modem.
FlashingNone. Scanning for configuration parameters.
Solid GreenNone. Operational.

Manufacturer Resources

For more detailed technical information on the Asus CM32, use the resources below from Cisco.
