Arris S33

Details



Modem Information

DOCSIS 3.1 Cable Modem

32x8 channel bonding

Compatible with future speed increases

Highest Service Level

Gigablast



Front View

S33 Front

Click to enlarge.

After the modem is successfully connected to the network, the LED status indicator illuminates blue or green continuously to indicate that the modem is online and fully operational.

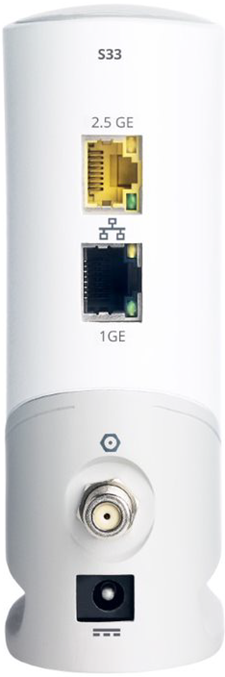

Back View

S33 Back

Click to enlarge.



The following ports or buttons are available on the back of the modem.

  • RESET - Use this button to reboot the modem or restore to factory defaults. It is recessed to prevent accidental resets. To reboot the modem, press and hold the indented Reset button for three to four seconds. To restore factory defaults, press and hold the indented Reset button for more than 10 seconds or until the front panel LED flashes.
  • 2.5 GE AND 1 GE ETHERNET - Connects a RJ-45 Ethernet cord to a device.
  • CABLE - Connects to the cable wall outlet.
  • POWER - Connects the modem to the power cord.


MAC Address

Click to enlarge.



MAC addresses are written as 12 digits containing both letters and numbers (0-9, A-F).

  • A MAC address is unique.
  • The first six characters of the MAC address are unique to the manufacturer of the device.
  • This information is usually found on a sticker located on the bottom of the modem.

Front Panel Troubleshooting

The front panel LED indicates the current status of your modem. To troubleshoot any connection problems, use the table below.

LED Color Status Problem
Amber Off No power. Verify all cable connections and try resetting the modem.
Flashing None. Firmware download is in progress.
Green Blinking Searching for downstream or upstream channels. Verify all cable connections and try resetting the modem if the LED indicator continues to blink.
Solid None. The modem is online in DOCSIS 3.0 mode.
Blue Solid None. The modem is online in DOCSIS 3.1 mode.
Blue and Green Alternating Flashing Error mode. Verify all cable connections and try resetting the modem.

Rear Panel Troubleshooting

The rear panel LED indicates the Ethernet connection status of your modem. To troubleshoot Ethernet connection problems, use the table below.


Ethernet Port Light Status Problem
1 GE and 2.5 GE Ethernet Off Device is not connected to an Ethernet port. Verify all cable connections and try resetting the modem.
Green None. A GigE connection is made between the modem and connected device.
Amber None. A 10/100 Mbps connection is made between the modem and connected device.

Manufacturer Resources

For more detailed technical information on the S33, use the resources below.
