Samsung or Arris XG2v2 HD Receiver

Details

Pace XG2 HD recevier front view



Receiver Capabilities

HD Capable

Not compatible with external hard drive

Guide Version

Contour 2

Installation Guides

Use the guides below for instructions on how to connect this receiver to a TV.

Connection Type Video Cable Connected to TV
Standard Definition Coax (PNG)
Standard Definition Composite (PNG)
High Definition Component (PNG)


Front View

Pace XG2 HD recevier front panel diagram showing Power button and LED light

Click to enlarge.

Number Description Active
1 IR sensor Yes
2 Power button Yes
3 LED Yes


Back View

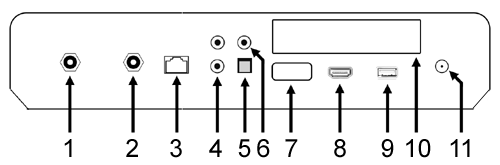

Pace XG2 HD receiver back panel diagram showing cable, power, and audio / video connection ports

Click to enlarge.


Number Description Active
1 Cable In Yes
2 Cable Out Yes
3 Ethernet Port No
4 Composite (RCA) Audio Out Yes
5 Digital (Optical) Audio Out Yes
6 Video Out Yes
7 HDMI In No
8 HDMI Out Yes
9 USB Port No
10 CableCARD Yes
11 Power In Yes


Dimensions

  • Height: 2.30"
  • Width: 9.85"
  • Depth: 6.30"
