Pace XG2 HD Receiver

Details

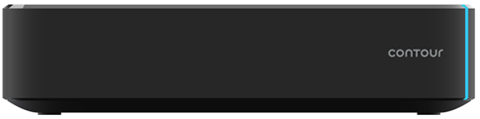

Pace XG2 HD recevier front view



Receiver Capabilities

HD Capable

Not compatible with external hard drive

This is a Non-DVR host receiver.



Guide Version

Contour 2

Installation Guides

Use the guides below for instructions on how to connect this receiver to a TV.

Connection Type Video Cable Connected to TV
Standard Definition Coax (PNG)
Standard Definition Composite (PNG)
High Definition HDMI (PNG)


Front View

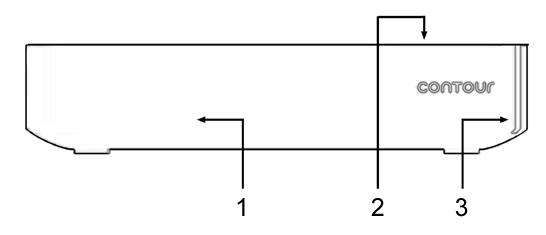

Pace XG2 HD recevier front panel diagram showing Power button and LED light

Click to enlarge.
Number Description Active
1 IR sensor Yes
2 Power button Yes
3 LED Yes


Back View

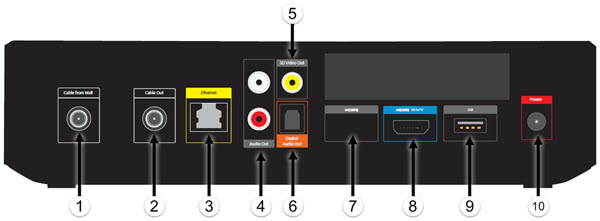

Pace XG2 HD receiver back panel diagram showing cable, power, and audio / video connection ports

Click to enlarge.


Number Description Active
1 Cable In Yes
2 Cable Out Yes
3 Ethernet Port No
4 Composite (RCA) Audio Out Yes
5 Video Out Yes
6 Digital (Optical) Audio Out Yes
7 HDMI In No
8 HDMI Out Yes
9 USB Port No
10 Power In Yes



Dimensions

  • Height: 8.88"
  • Width: 6.88"
  • Depth: 2.35"
