Cradlepoint E100 LTE Backup

Details

Specifications

Use the table below to identify the feature specifications of the Cradlepoint E100 LTE backup.

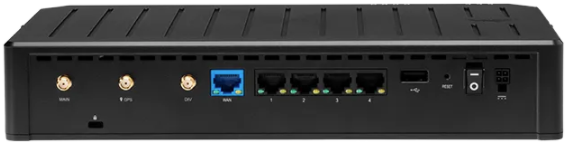

FeaturesSpecifications
Modem / LTE Backup RouterEmbedded C4D
Ethernet5 X GbE RJ45
WiFiDual-radio, dual-band, concurrent operation (2.4 and 5 GHz)

Note: The WiFi radios are disabled.
Expansion/Console1 X USB 2.0 Type A
GNSS/GPS1 X SMA GNSS antenna connector
PowerExternal DC power supply, 100-240 VAC input, 12 VDC 2A output
Dimensions4.7 x 3.2 1.0 in

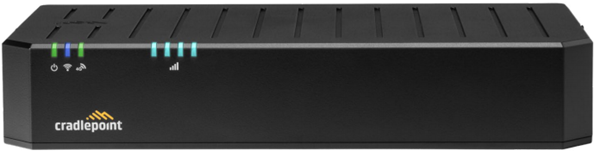

LED Indicators

The lights indicate the current state of your LTE backup.

IndicatorStatus
Power

image of the power icon below led indicator
  • No Light: Not receiving power
  • Green: Powered on
  • Blinking Green: Powered by battery
  • Yellow: Attention
  • Blinking Yellow: Battery needs replaced

    Note: The E100 does not use a battery.
Signal Strength

image of the signal icon below led indicator
  • No Lights: No signal
  • 4 Solid Bars: Strongest signal
  • 1 Blinking Bar: Weakest signal
  • 4 Blinking Bars: Battery door is not installed, LTE backup is off
Embedded Modem / LTE Backup Router

image of the lte router icon below led indicator
  • No Light: No removable LTE backup detected
  • Solid Green: LTE backup is providing internet service
  • Blinking Green: LTE backup is connecting
  • Blinking Yellow: Data connection error
  • Solid Yellow: LTE backup in standby; no issue detected
  • Blinking Red: LTE backup is in the process of resetting
WiFi

image of the wifi icon below the led indicator
  • No Light: WiFi is not operating
  • Blue: WiFi is on and operating normally

    Note: WiFi is disabled.

Manufacturer Resources

For more detailed technical information on the Cradlepoint E100 backup, refer to the Cradlepoint E100 Data Sheet (PDF).
