Cisco Explorer 4742HDC High Definition Receiver

Details

Arris XG1 high definintion DVR receiver front view

Receiver Capabilities

HD Capable

Not compatible with external hard drive


Note: This equipment will take longer to load when rebooted. Allow 60 minutes when rebooting

Guide Version

Contour

Installation Guides

Use the guides below for instructions on how to connect this receiver to a TV.


Connection Type Video Cable Connected to TV
Standard Definition Coax (PNG)
Standard Definition Composite (PNG)
High Definition Component (PNG)
High Definition HDMI (PNG)

Front View

Image of Arris XG1 high definition DVR receiver front panel diagram showing Power button, and LED indicators and display

Click to enlarge.

Number Description Active
1 Power Button Yes
2 LED Display Yes
3 USB Port No

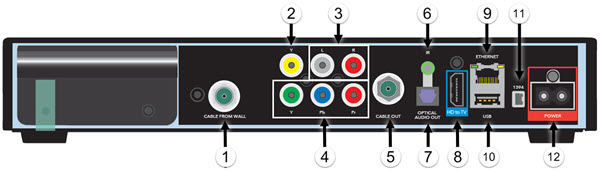

Back View

Image of Arris XG1 high definition DVR receiver back panel diagram showing power, cable, and audio / video connection ports

Click to enlarge.


Number Description Active
1 Cable In Yes
2 Video Out Yes
3 Audio Out Yes
4 Component Out Yes
5 Cable Out Yes
6 IR Port Yes
7 Optical Audio Out Yes
8 HD To TV Yes
9 Ethernet Port
  • TV Connectivity (UPNP Connection) - Yes
  • Internet Connectivity - No
10 USB Port
  • TV / Internet Connectivity - No
  • +5VDC Power - Yes
11 1394 Yes
12 Power In Yes


Dimensions

  • Height: 2.0"
  • Width: 11.20"
  • Depth: 9.0"
