Cisco Explorer 4642HDC High Definition Receiver

Details

Arris XG1 high definintion DVR receiver front view

Receiver Capabilities

HD Capable

Not compatible with external hard drive


Note: This receiver will take longer to load when rebooted. Allow 60 minutes when reloading.

Guide Version

Advanced TV or Contour

Installation Guides

Use the guides below for instructions on how to connect this receiver to a TV.

High Definition Component (PNG)

Connection Type Video Cable Connected to TV
Standard Definition Coax (PNG)
Standard Definition Composite (PNG)

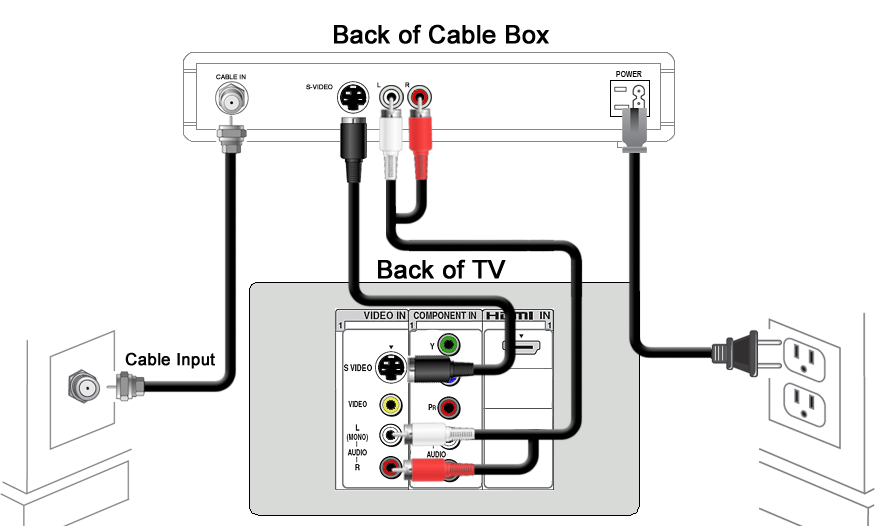

Standard Definition S-Video (PNG)
High Definition HDMI (PNG)

Front View

image of Arris XG1 high definition DVR receiver front panel diagram showing Power button, and LED indicators and display

Click to enlarge.

Number Description Active
1 Volume + / - Buttons Yes
2 Channel + / - Buttons Yes
3 Select Button Yes
4 LED Display Yes
5 Guide Button Yes
6 Info Button Yes
7 Exit Button Yes
8 Settings Button Yes
9 IR Sensor Yes
10 USB Port No
11 Power Button Yes


Back View

image of Arris XG1 high definition DVR receiver back panel diagram showing power, cable, and audio / video connection ports

Click to enlarge.


1 Multi-Stream Cable Card Yes
2 Cable In Yes
3 Cable Out Yes
4 Audio Out Yes
5 Composite Out Yes
6 Component Out Yes
7 Digital Audio Out Yes
8 Optical Audio Out Yes
9 IR Port Yes
10 S-Video Out Yes
11 HD To TV Yes
12 Ethernet Port
  • TV Connectivity (UPNP Connection) - Yes
  • Internet Connectivity - No
13 USB Port
  • TV / Internet Connectivity - No
  • +5VDC Power - Yes
14 1394 No
15 Power Input No
16 AC Outlet Yes


Dimensions

  • Height: 2.25"
  • Width: 13.75"
  • Depth: 9.00"
