Arris XG1v3 High Definition DVR Receiver


Arris XG1 high definintion DVR receiver front view


Receiver Capabilities

HD Capable

Up to 6 simultaneous DVR recordings

Up to 1000 hours of SD recording

Up to 500 hours of HD recording

Note: Estimated storage will vary with mix of HD and SD recordings.

Not compatible with external hard drive

Guide Version

Contour 2


Description Detail
Height 2.55"
Width 13.43"
Depth 9.05"

Front View

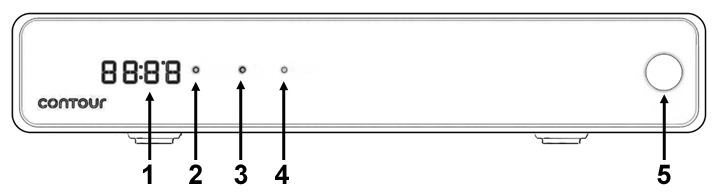

image of Arris XG1 high definition DVR receiver front panel diagram showing Power button and LED indicators and display

Click to enlarge.

Number Description Active
1 LED display Yes
2 Remote LED - green Yes
3 Data LED - yellow Yes
4 Record LED - red Yes
5 Power button Yes

Back View

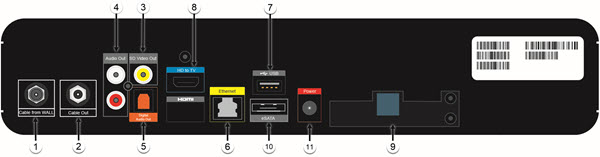

Arris XG1 high definition DVR receiver back panel diagram showing power, cable, and audio / video connection ports

Click to enlarge.

Number Description Active
1 Cable In Yes
2 Out to TV Yes
3 Composite (RCA) Video Out Yes
4 Composite (RCA) Audio Out Yes
5 Digital Audio Out Yes
6 Ethernet No
7 USB (1 & 2) No
8 HDMI Input 1 No
9 HDMI Input 2 No
10 HDMI To TV Yes
11 Hard Drive Yes
12 eSATA Port No
13 SD Card No
14 Power In Yes

Installation Guides

Use the guides below for instructions on how to connect this receiver to a TV.

Connection Type Video Cable Connected to TV
Standard Definition Coax (PNG)
Standard Definition Composite (PNG)
High Definition



  • Always ensure the receiver is unplugged before plugging in the HDMI cable.
  • The HDMI cable to the TV must be plugged into the HDMI IN port in order to function properly.
